A simple EMG Sensor using capacitive sensing

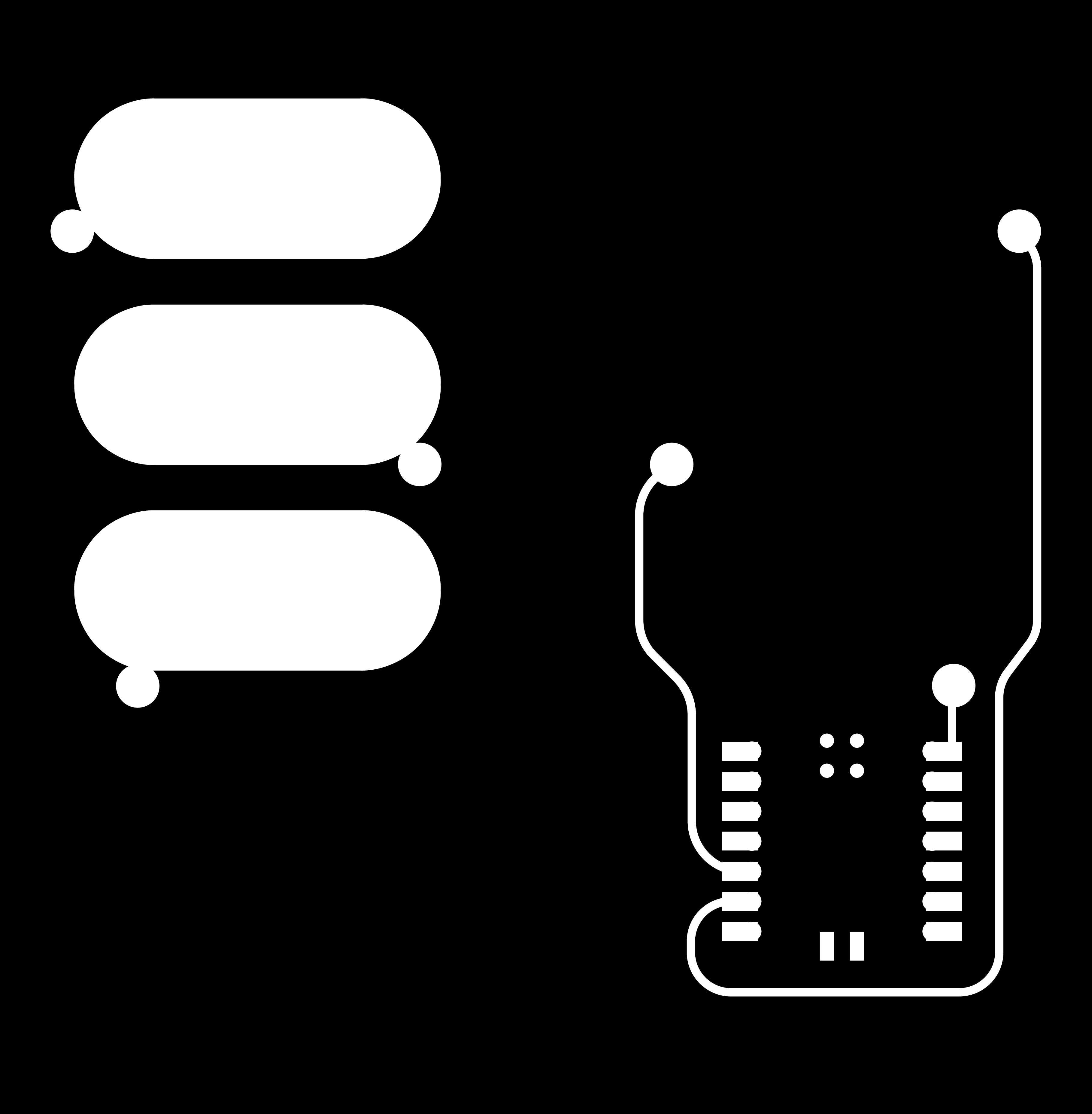

First tried to use Kicad, but my design was mainly about the pads not the components - so I changed it to design tools like Illustraotr and Rhino. After then, I ended up having two parts to combine, as the board is designed to be double-sided.

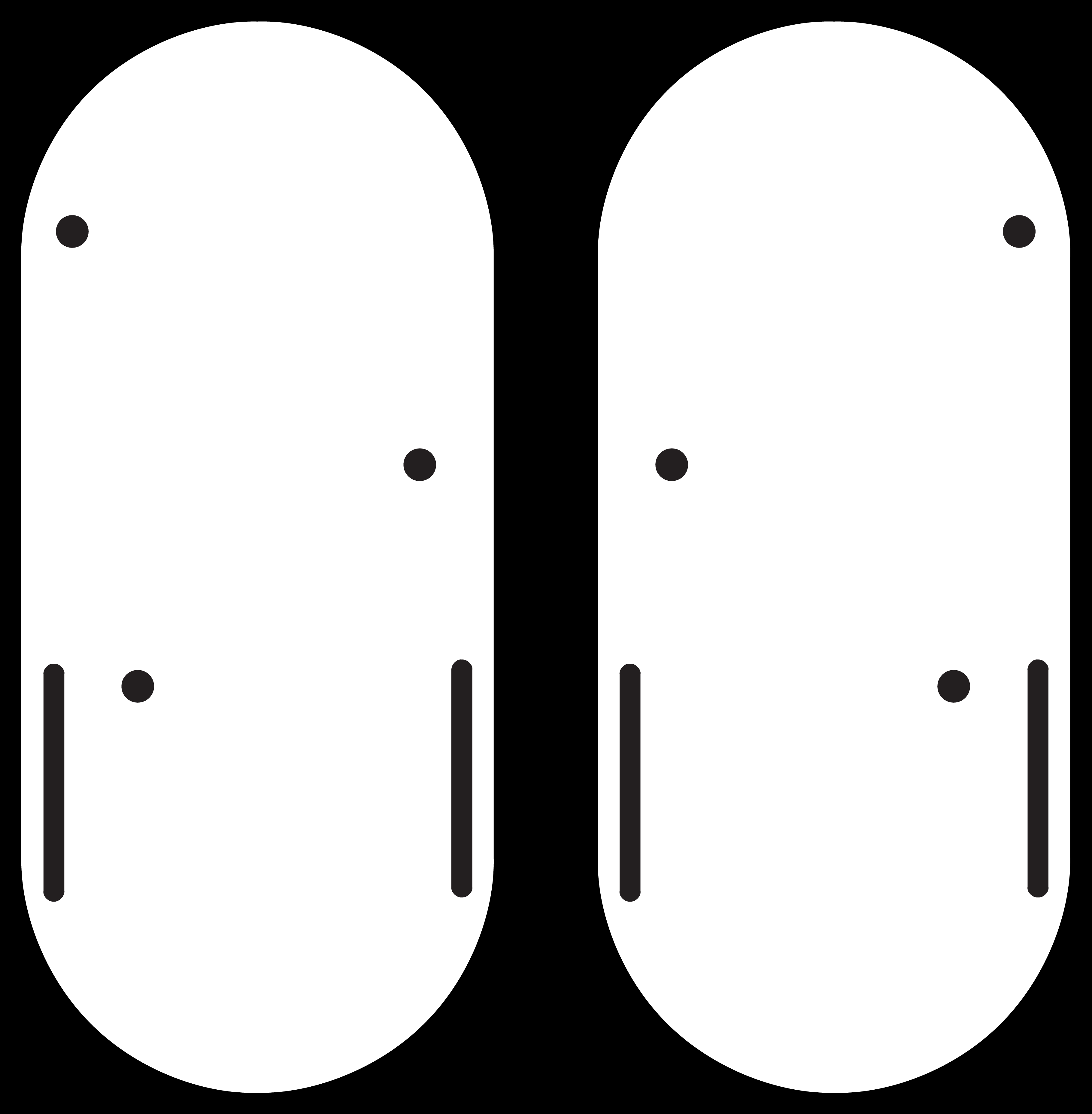

Then prepared the file into two part pngs to import in the program for CNC machine.
