Hyundai Autron Multiscreen IVI
Display Manager UI designSNU Real-Time Ubiquitous Systems Laboratory Internship project, 2018
Interaction design, Graphical user interace design
Collaborated with
System Development: Oh-Chul Kwon, Dongwan Kang
본 프로젝트는 하나의 컨트롤러(CPU)로 여러 화면을 동시에 제어하면서도 각 화면에서도 독립적인 행위가 가능할 수 있도록 하는 멀티스크린 IVI(In-Vehicle-Infotainment) UI디자인입니다.

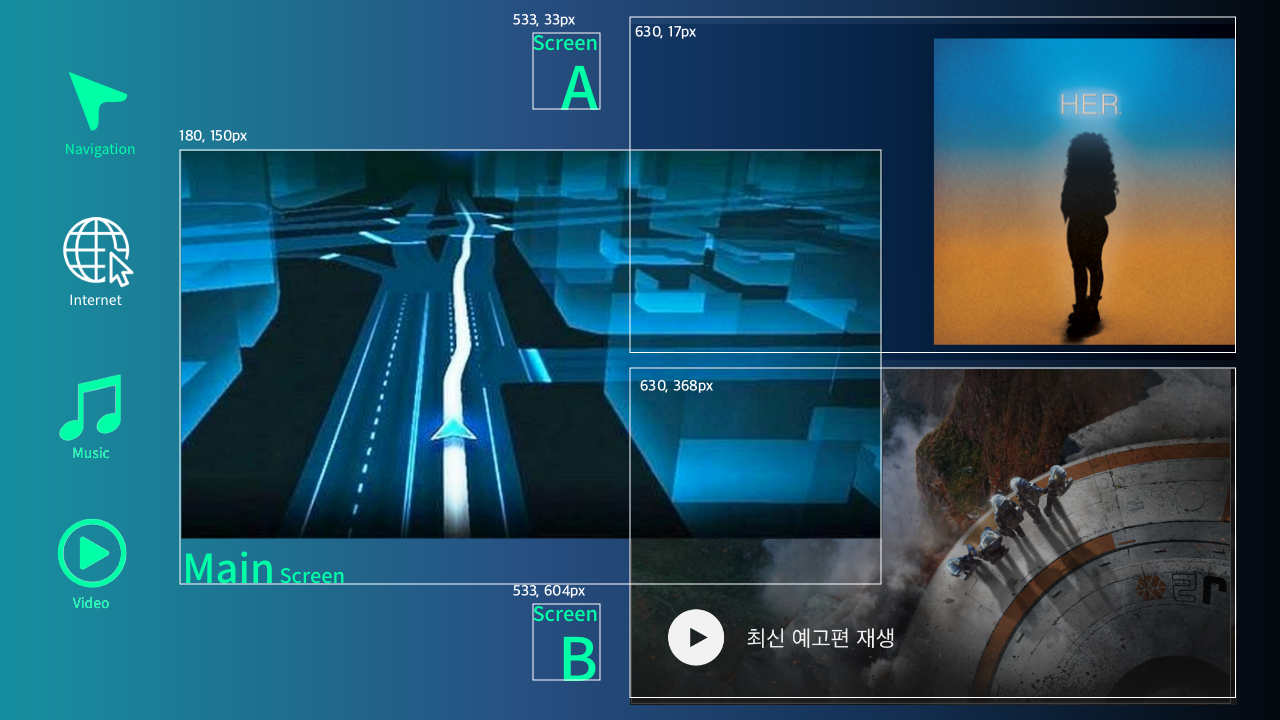

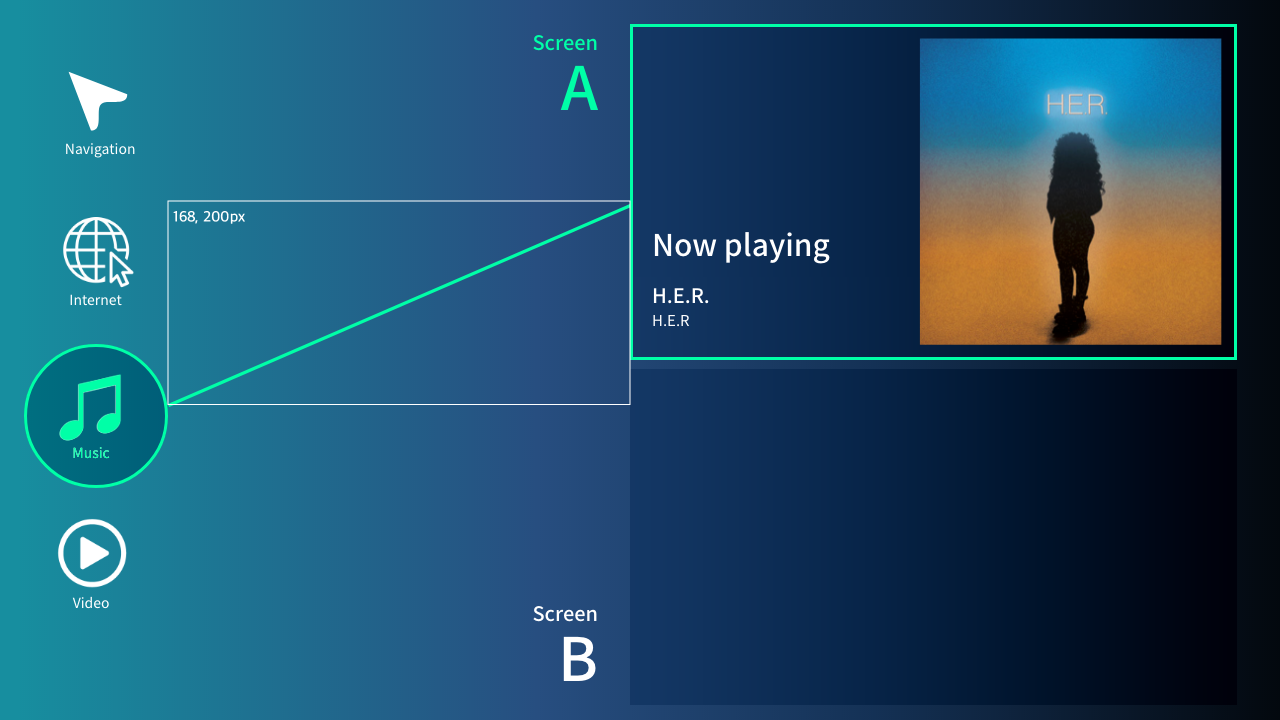

This project is a multi-screen IVI (In-Vehicle-Infotainment) UI design that allows independent actions on each screen while simultaneously controlling multiple screens with one controller (CPU).
![](https://freight.cargo.site/t/original/i/917558651753d4cd3be546d47a0c1a895279064b5691de41cb5a0057b243c25a/Screen-Shot-2020-11-19-at-10.24.19-AM.png)
![](https://freight.cargo.site/t/original/i/891a5716fe8e4c137e36593efc1895ec2a55b1f3fbc13243ed2e4eb1d81c983a/scene2.png)
![](https://freight.cargo.site/t/original/i/1a59235c207972bab7a13f255f7a639e5b327192b3d8e72c7e74acb8672f34e0/scene3.png)
![](https://freight.cargo.site/t/original/i/e7f40ee91abe85903f7a0a9a338afb7a3269d147ac598b73d0e851ac210d7b82/scene4.png)
![](https://freight.cargo.site/t/original/i/4a2148a062d6546193e85705254dcc5fb03bb20186ad067ee5636fcbb687cbcd/scene5.png)
Demo
Process
User Interface flow
![](https://freight.cargo.site/t/original/i/b2b7dd4a6632234ee044f8da46d5189230afc7f21d55cf2cdf9532d6a7205760/rubis_ui_explain.png)
Mid Demo
